South Korea’s rigorous industrial manufacturing and pipe processing sector, structural steel fabricators face stringent demands for precision, fast delivery, and material conservation. High-grade structural tubing used in Korean shipbuilding, infrastructure construction, and heavy machinery demands exact cut geometry and zero surface damage.

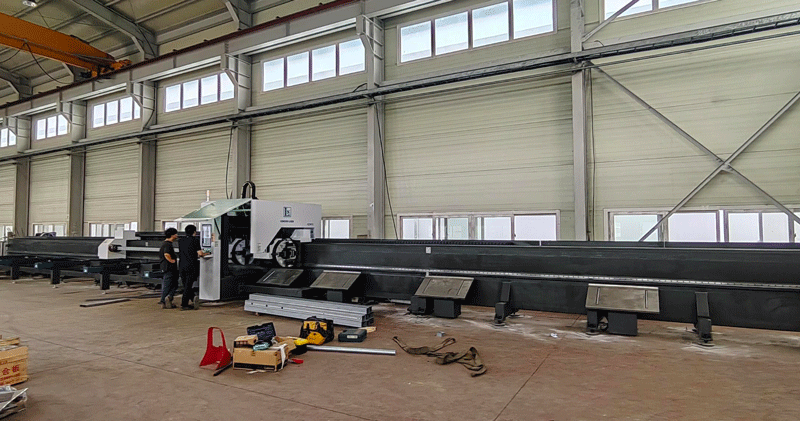

To keep pace with growing order books and high domestic labor costs, a prominent pipe processing specialist in Gyeonggi-do, South Korea, replaced their multi-step cutting line with the LX-K24 laser tube cutting machine. Outfitted with a heavy-duty 3-chuck clamping system, 12-meter automatic feeding, and 9-meter servo-driven unloading, the LX-K24 established a continuous, zero-scrap production workflow.
Prior to commissioning the LX-K24, the client faced persistent bottlenecks standard to large-profile tube cutting:
High Material Scrap on High-Cost Korean Steel: With high-grade structural carbon and stainless steel, conventional 2-chuck cutting systems left 300 mm to 600 mm scrap tails per piece. Over thousands of production meters, this waste eroded export margins.
Deflection and Angular Distortion Across 12m Spans: Sourcing 12-meter mill lengths reduced raw material joints, but traditional sawing and plasma beveling lines struggled with sagging. Workpiece droop led to cutting misalignments, poor bevel repeatability, and frequent machine collisions.
Severe Shop-Floor Labor Constraints: Manual overhead crane movement for raw 12m bundles and finished 9m structural columns required three to four workers per shift, conflicting with the client's automation and lean-manufacturing objectives.
The client integrated the heavy-duty LX-K24 laser tube cutting machine, tailored specifically for extra-long, high-tonnage pipe profiles.
| Technical Parameter | Engineering Specification / Capability |
| Model | LX-K24 Heavy-Duty Fiber Laser Tube Cutting Machine |
| Installation Site | Gyeonggi-do, South Korea |
| Chuck Architecture | Dynamic 3-Chuck System (Sync Clamping & Intelligent Handoff) |
| Raw Material Infeed | 12-Meter Fully Automatic Bundle Loading System |
| Finished Part Discharge | 9-Meter Synchronized Servo-Driven Unloading Table |
| Processed Geometries | Round pipes, square/rectangular tubes, H-beams, and channel steel |
| Tailing Performance | Zero-Tailing (Near-zero material waste) |

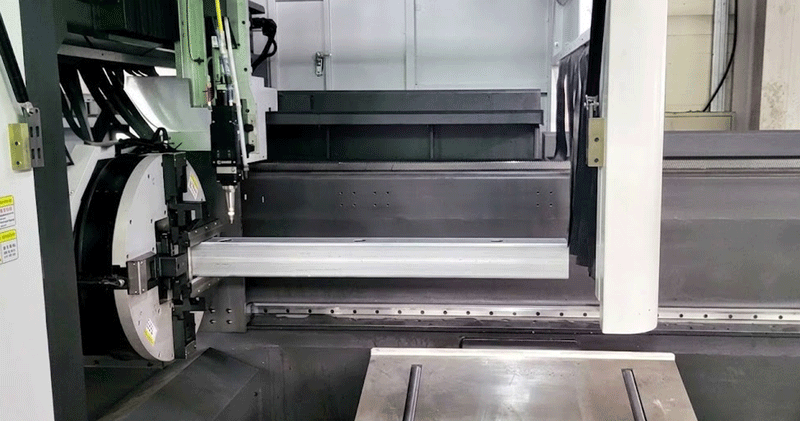

The LX-K24's 3-chuck architecture completely solves the tailing scrap issue. As the laser head processes the end of a 12-meter tube, clamping control transfers seamlessly from the rear and middle chucks to the front chuck. By stabilizing the pipe directly on both sides of the cut point, the cutting head works through the final millimeters of raw stock, eliminating expensive end-waste.
The 12-meter automated loader handles full bundles, cycling single pipes into the chucks via pneumatic centering arms. Heavy-duty follow-up rollers dynamically match rotation height along the 12m bed, eliminating sag and ensuring high-speed rotational concentricity throughout intricate contour cuts.
Discharging long, heavy segments without bending or surface friction requires active handling. The 9-meter receiver features multi-axis servo arms that lift to support the pipe during cut-off, then lower smoothly to roll finished segments onto sorting trays—ready for automated robotic welding lines.
Within four months of commissioning the LX-K24 laser tube cutting machine, the Korean facility documented measurable improvements:
Over $48,000 Annual Savings in Steel Scrap: Achieving zero-tailing on heavy-gauge structural steel dropped drop-off waste from 13.5% to under 2%.
Output Increased by 320%: The single-pass laser process handles cutoff, hole drilling, slot mortises, and weld preps simultaneously, replacing four mechanical saws and two drilling rigs.
Tight ±0.03 mm Cutting Tolerances: Elimination of manual post-cut grinding allowed finished columns to move immediately to automated assembly.
Labor Reallocation: Automated infeed and outfeed reduced line manpower from four workers to a single CNC operator per shift.
For fabricators managing long, heavy-duty structural pipe, the LX-K24 laser tube cutting machine provides the structural rigidity, zero-tailing efficiency, and automated throughput necessary to remain competitive in global supply chains.
[Contact our technical engineering team today] for cycle-time calculations, layout integration drawings, or a live cutting demonstration.
Q1: How does the LX-K24 laser tube cutting machine achieve zero-tailing on long pipes?
The LX-K24 uses a synchronized 3-chuck clamping configuration. As the raw pipe advances toward the final cut, the middle and front chucks clamp the work simultaneously while the rear chuck disengages, allowing the cutting head to cut right up to the end of the stock without dropping the profile.
Q2: Can the LX-K24 process structural open profiles such as H-beams and channel steel?
Yes. Equipped with specialized chuck jaws and adaptive clamping algorithms, the LX-K24 handles standard round and square tubing as well as open structural profiles including C-channels, angle iron, and H-beams up to 12 meters long.
Q3: Why is a 9-meter automatic unloading table essential for heavy pipe processing?
Long workpieces flex under their own weight. Unsupported unloading causes structural bending, dimensional distortion, and safety risks. The LX-K24's 9-meter servo-driven table dynamically tracks the pipe during cutting and lowers it gently to protect the finished edge and surface.
